A mill for model makers and others needing intricate parts.
The M1036 4" x 8" Micro Milling Machine from Shop Fox is perfect for machining high-precision small parts.
The digital depth readout provides accurate height measurements, zeroing at any height, and incremental readout adjustments.
The variable-speed dial controls the spindle speed. The high/low speed range is dependent on which pulley the belt is on.
The 3-1/2" x 8" table can be moved in two axes. Each axis is independently controlled by a crank handle. Each handle has graduated dials for precise movement.
The M1036 has a traditional downfeed lever for quill movement. It also has a micro downfeed knob for more accurate control of quill depth.
Like all Shop Fox mills, the M1036 comes with a 2-year limited warranty.
The M1036 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill.
The Shop Fox Customer Service and Technical Support Teams are also U.S.-based. Parts for the mill may be available online and shipped from the parts warehouse in Springfield, MO.
Made in an ISO 9001 Factory
SPECIFICATIONS:
Motor: 1/4 HP, 110V, single-phase, 2A
Drilling capacity: 1/4"
Spindle speeds: Variable: 0–5000 RPM
Spindle taper: JT-1
Spindle travel: 1-1/2"
Spindle to column distance: 6-1/2"
Column swivel: 360°
Head travel: 7-3/4"
Table travel (longitudinal): 5-1/2"
Table travel (cross): 5-1/2"
Table size: 3-1/2" x 8"
Overall dimensions: 11" W x 14" D x 19" H
Approximate shipping weight: 44 lbs.
FEATURES:
Two-year warranty!!
Digital depth readout
Compound slide table
Variable speed, 0-5000 RPM

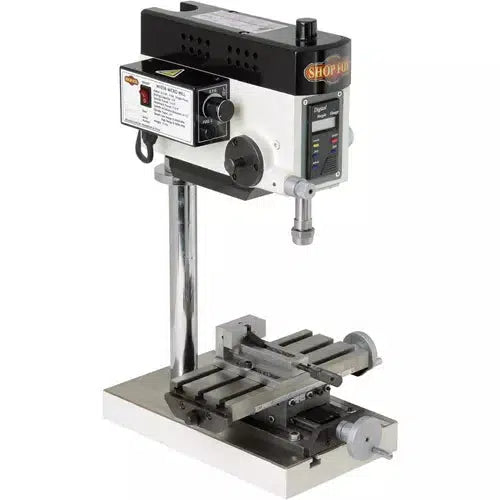

Pictured with the optional M1038 Quick Vise and M1037 Collet which are not included.
